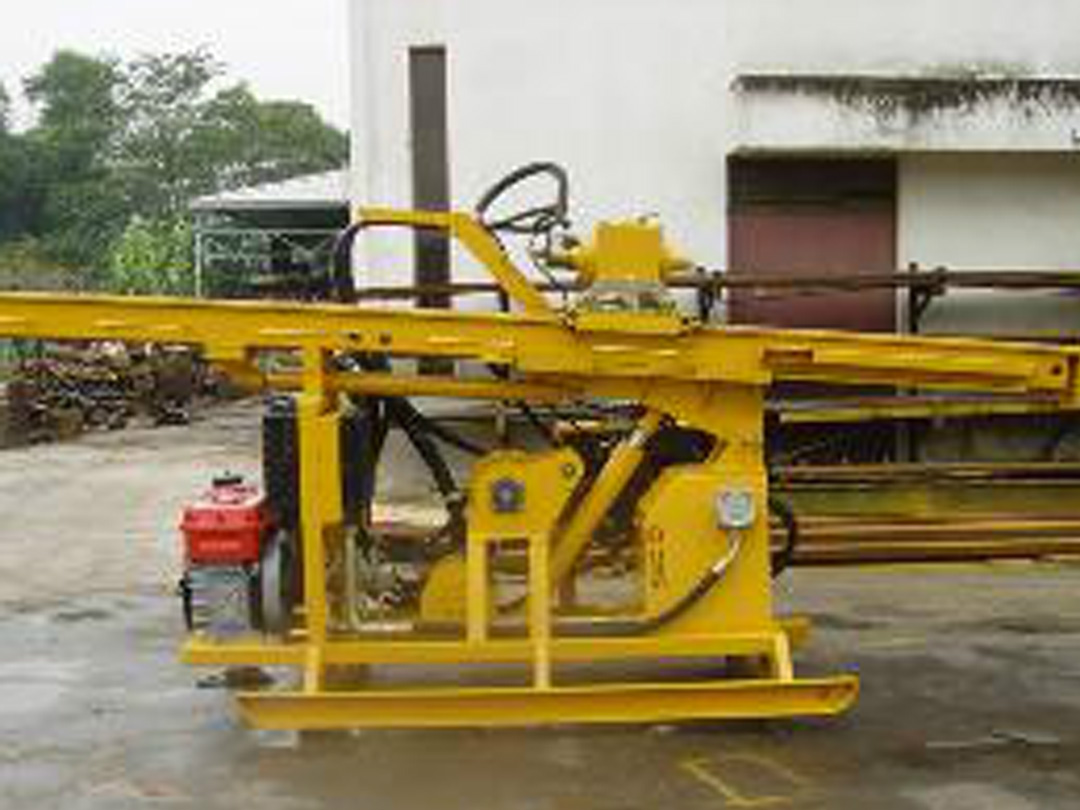

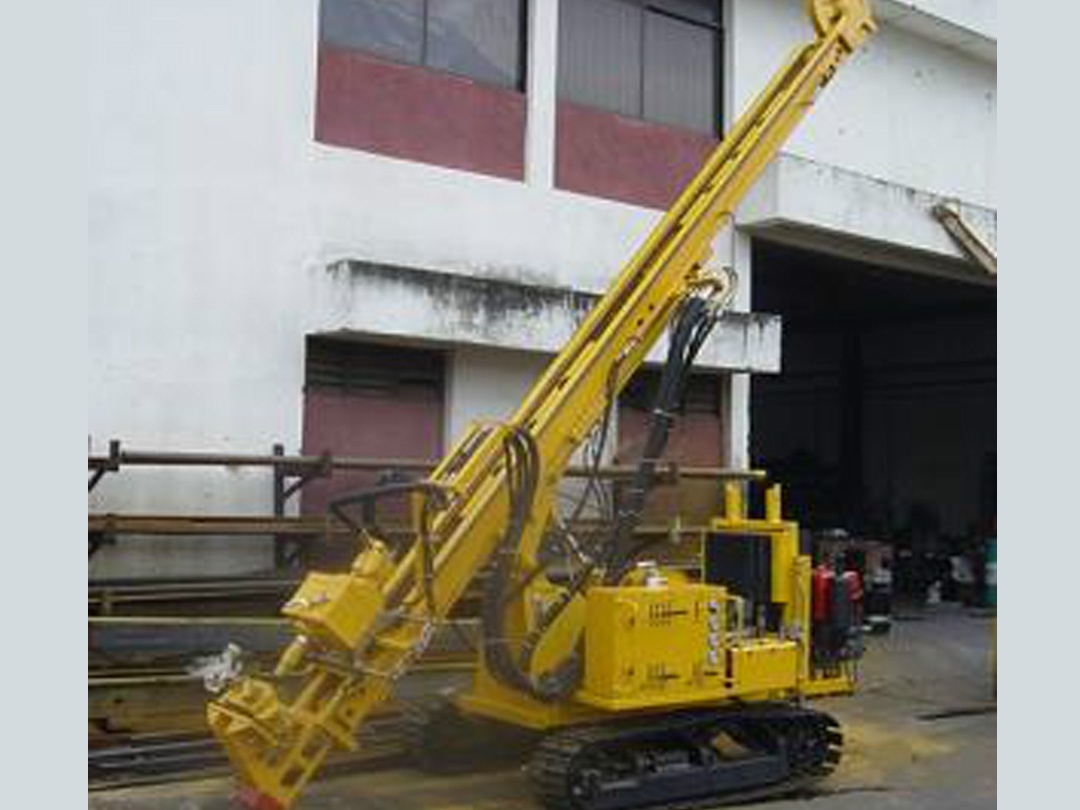

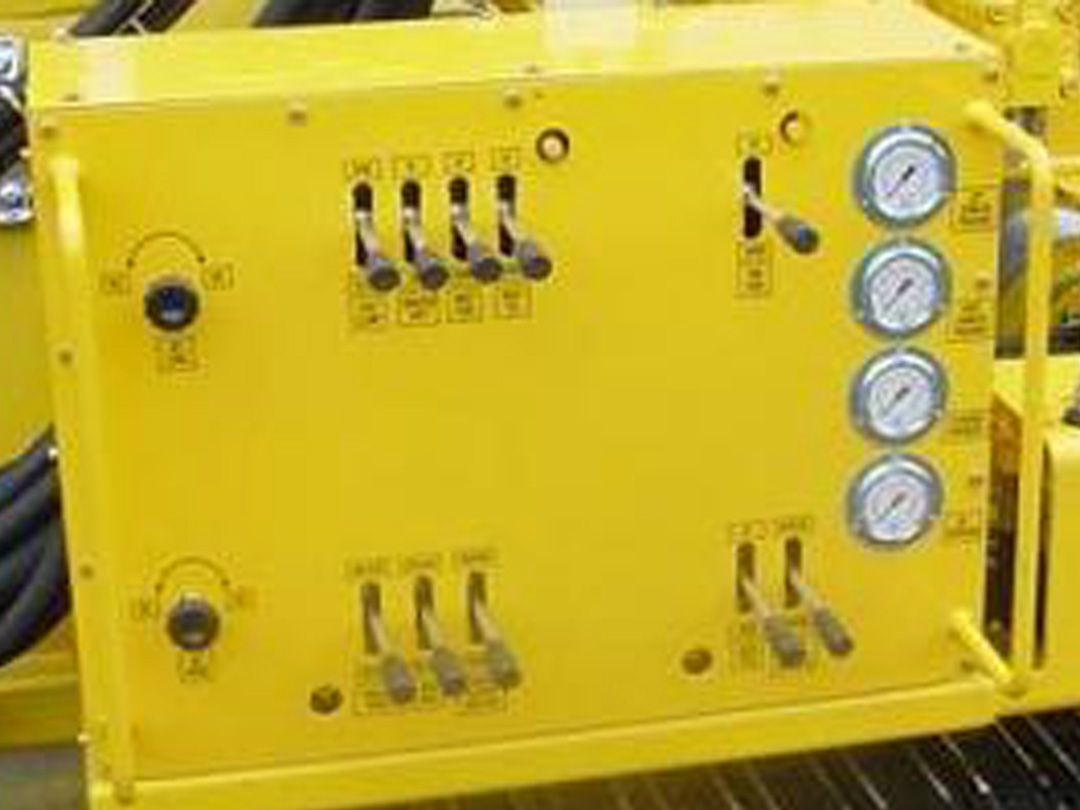

GD150

Hydraulic
Main Pump : Variable Piston Pump(35 liters/min)
Auxiliary : Geared Pump(24 liters/min
) Max./Con't Pressure : 250/210 bar
Tank Capacity : 100 liters

Hydraulic
Main Pump : Variable Piston Pump(35 liters/min)
Auxiliary : Geared Pump(24 liters/min)
Max./Con't Pressure : 250/210 bar
Tank Capacity : 100 liters

Rotator
Model : Core-900
Type : Hollow Spindle
Max. Torque : 1. 201 NM
2. 474 NM
3. 1903 NM
Max. Speed : 1. 730 rpm
2. 309 rpm
3. 77rpm

Drill Mast
Total Height : 6280 mm
Capacity : 3.0m rod

Rotator Traverse
Feed Stroke : 4000mm
Pull Down Force : 2629 kgf
Retract Force : 4700 kgf

Fine Feed
Pull Down : 12.92 m/min
Retract : 7.17 m/min

Rapid Feed
Pull Down : 27.8 m/min
Retract : 15.4 m/min

Crawler
Speed : 3 km/hr
Ground Clearance : 200 mm
Total Width : 1676 mm
Track Width : 300 mm
Axle Distance : 1500 mm

Main Winch
Winch Torque : 19.8 KN
Winch Speed : 51 m/min
Cable Capacity : Ø9mm x 30m

Wireline Winch
Full Drum : 1.9 KN
Bare Drum : 6.78 KN
Cable Capacity : Ø6mm x 200m

Foot Clamp
Jaw Capacity : AW - HW
: BQ - HQ

Stabilizer
Hydraulic Jack : none

Drilling Capacity*
4" RC : 80 m
4" Auger : 50 m
HW : 80 m
NW or HQ : 100 m
BW or NQ : 150 m
AW or BQ : 200 m

Dimension**(mast on horizontal position)
Width : 1805 mm
Length : 6100 mm
Height : 2300 mm

Flushing System
Mud or Water

Weight**
2.8 tons

* Drilling Capacity is depending on different application of drilling works, on-site soil condition, etc. ** Dimensions and Weights are approximate.
